Manufacture custom assorted shims and brackets to complete wings

The trailing edge edge at the outboard side of the step on skin dips noticeably then rises. A 0.64mm shim was made to remove the dip, improving the appearance somewhat.

One of the shims

This is a replacement for shim made earlier, which was lost. This shim improves the skin transition

Influenced by P. Latten's blog, I chose not to make a grommet hole in rib 11. Instead, two 1mm brackets were made to hold a grommet to support the nav light cable, shown here with the soon to be installed outermost hinge bracket.

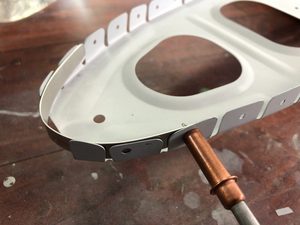

The rev 0 rib 11 supplied was rev 0 which has two 4mm holes on the flanges nearest the tip as seen. I do not wish to upsize the skin rivets at this highly curved location. Instead I have made two "washers" which will be drilled at installation and will provide a surface for a 3.2mm rivet tail to set against, constraining the flanges. These elongated washers will also fix into the correctly sized adjacent flanges. The remaining holes will be drilled at installation.

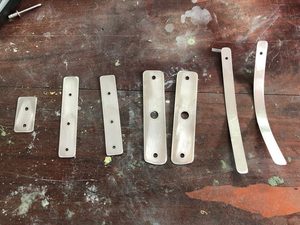

Completed set of parts

After scrubbing and priming
