Horizontal Stabilizer Assembly

Preparing to cut and separate the elevator from the Horizontal Stabilizer. which was molded as one from the factory.

Components for Horizontal Stabilizer assembly.

Horizontal Stabilizer spar with micro applied.

Main Spar with micro and glassed in per manual.

Horizontal Stabilizer Spar extension (blue section) installed per manual.

Terrible example of hinge attachment.

Rear Spar attached on Horizontal Spar.

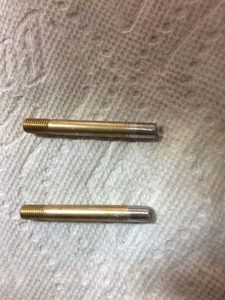

Horizontal Stabilizer pins ( AN 7 bolts) to be attached for support between stabilizer and fuselage.

Looks good to go.

Horizontal Stabilizer's main spar. Holes drilled for extra mechanical bit with Micro adhesive. 2 total.

Dry fitment of hinge attach pate.

A better looking hinge attachment. Most holes are for mechanical bite.

Drilling hole in Horizontal Spar tube per manual.

4 layers of 9 once crow weave glass for spar attachment pin strengthening.

Glass layup done to protect and secure the end caps on the Horizontal Stabilizer.

Horizontal attachment pin dry fitting and marking location to drill the hole.
