Pitot/AOA lines and stand-offs

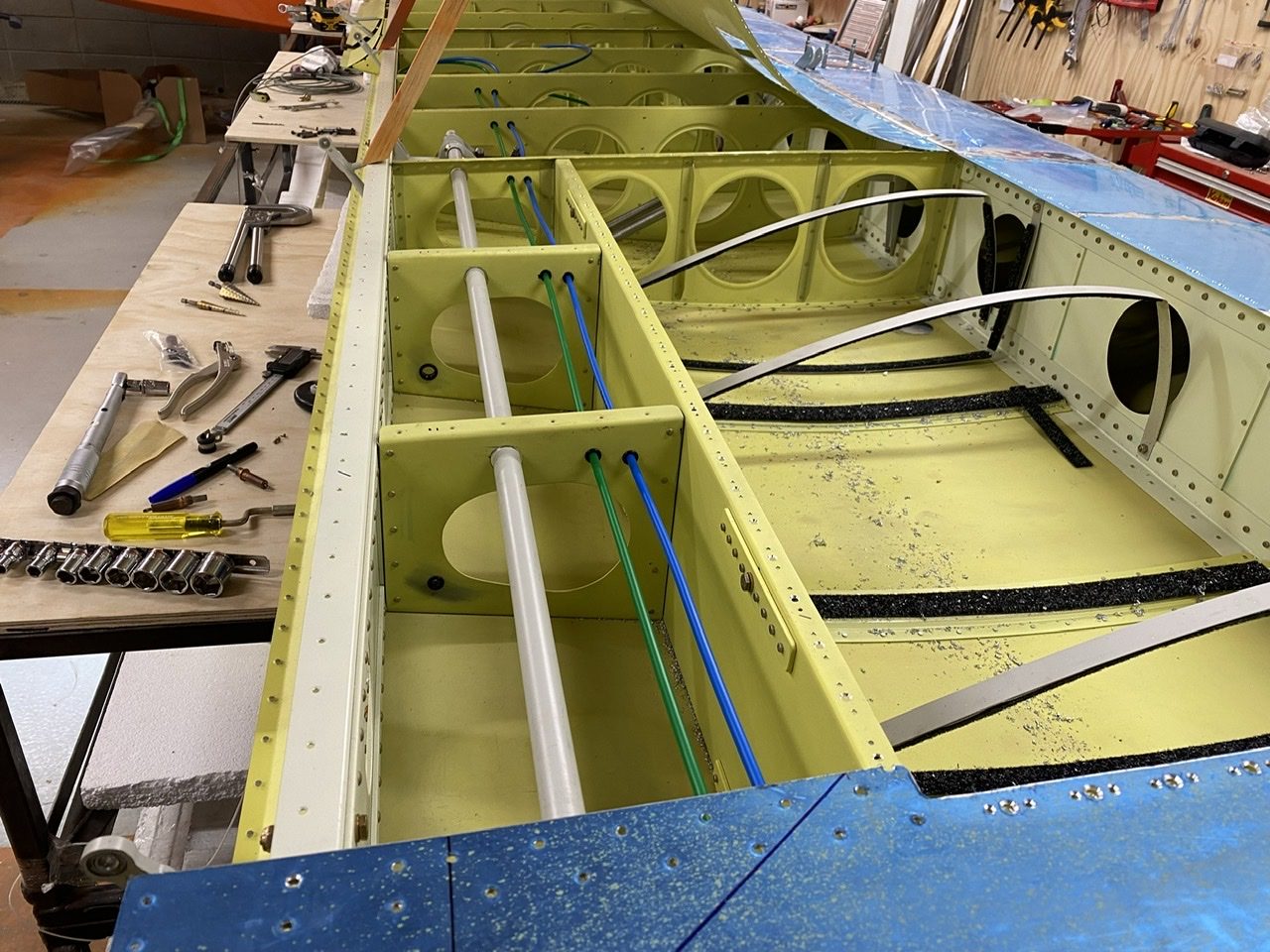

After pondering the best route to run the pitot and AOA lines I decided to run them aft of the fuel tank bay, then across the wing to the Pitot tube. I drilled 10mm holes and used nylon inserts which worked well.

I then made up some .025 aluminium standoffs and will rivet these in place tomorrow, onto the rib stiffeners. These will guide the lines crosswise to the pitot tube, and also in the wing root area.
