Scott's RV-14 Build

Left Elevator Continued

4 years ago
| Working on: Elevator, Tail

Big day in the shop. Finished riveting the rear spar to the upper skin, primed both skins interior fay surfaces, also primed the trim access reinforcement doubler and installed it in the lower skin along with 2 more nutplates, back riveted the E-1008 ribs to the inside of both skins and clecoed it all together for riveting.

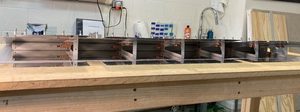

Upper and lower skins clecoed together at the ribs

Upper and lower skins clecoed together at the ribs

Upper skin primed with ribs installed

Upper skin primed with ribs installed

Lower skin primed with doubler, nutplates and ribs installed.

Lower skin primed with doubler, nutplates and ribs installed.

Trim Access Reinforcement Doubler primed.

Trim Access Reinforcement Doubler primed.
